Maxx Model MI PRO CNC Hopup Unit ICS

CNC Aluminum Hopup Chamber MI Pro (with BB Latching System) unit is precisely made to improve accuracy and ensure consistent air seal for ICS CXP/CS4/EBB (include old models) M4/M16 AEG series.
The Hopup Chamber MI unit has a precision rotary dial design for fine hopup adjustments, also re-engineered the hopup levers and concave nubs to work best with R-hop and Standard-Hop to keep the BBs shooting straight and accurate on every single shot.
The Hopup Chamber MI unit is designed to accept ICS stock nozzle, or nozzle length from 21.00mm to 21.25mm, and also fully compatible with stock bucking and most aftermarket soft and hard rubber bucking without losing FPS or dropping BBs.
The Hopup Chamber MI Housing is equipped with a new CNC Delrin Locking C-Clip design to hold barrel tight without wobbling and twisting, and 3 compression springs on top, at bottom and in center of housing to ensure the hopup unit is exactly centered, straight and air tight at all times when adapted to stock gear box or any V2 gear boxes with 11.5mm or 12mm inner bore.
More than that, the Hopup Chamber MI Pro unit is specially designed with BB Latching System to prevent dropping BBs after removing the magazine. The Latching System can be also manually opened to release BBs from inside hopup chamber by hand.

***The Dual UV LED Boards and Module set and Single UV LED Board w/ Clear Cover and Module set are optional add-ons to glow BBs in the dark. Operating Voltage from 7VDC - 15VDC (2-4 cells LiPo, 6-13 cells NiCad). (Sold separately)
***The Empty Magazine Detection Sensor and Electronic Switch Controller are optional add-ons to stop Motor/HPA firing when the magazine is empty. (Sold separately)
***Test results: FPS might be increased from 10FPS to 30FPS over stock setup. Please check your FPS!

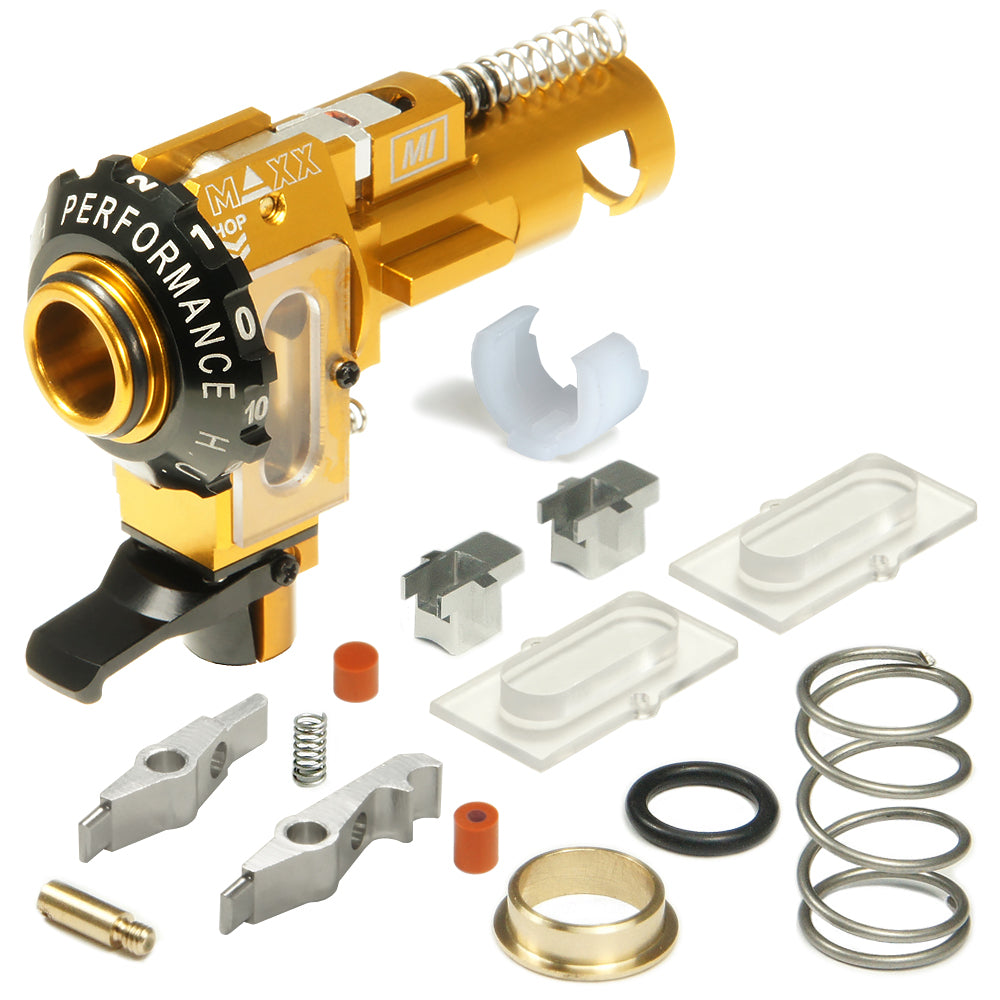

	Includes
	1 x CNC Aluminum Hopup Chamber MI Pro (with BB Latching System) unit
	2 x Strong Clear Vinyl Cover set
	1 x CNC Aluminum Standard-Hop Arm
	1 x CNC Aluminum R-Hop Arm
	1 x Silicone Rubber Standard-Hop Nub Damper
	1 x Silicone Rubber R-Hop Nub Damper
	1 x CNC Aluminum 4.5mm length Precision R-Hop Concave Nub
	1 x CNC Aluminum 6mm length Precision R-Hop Concave Nub
	1 x CNC Brass Threaded Slot Pin
	1 x CNC Delrin Locking C-Clip
	1 x CNC Barrel Brass Spacer
	1 x Brass Spacer Holder Oring
	3 x Steel Compression Spring

	Overall Length: 51mm
	Overall Height: 38.5mm
	Hub Outer Diameter (to fit into Gear Box): min 11.5mm - max 12mm
	Hub Outer Diameter (to fit into Outer Barrel): min 12mm
	Hub Inner Diameter (to fit Nozzle): max 8.3mm
	Feeder Outer Diameter (to fit magazine): min 9.25mm
	Feeder Length (to fit magazine): max 6.25mm
	Material: Aluminum 6061

	Features
	Machined from a solid aircraft aluminum block with tight tolerances to provide better accuracy, consistency, and durability
	Improved accuracy and ensure consistent air seal for ICS CXP/CS4/EBB (include old models) M4/M16 AEG series
	Precision rotary dial design for fine hopup adjustments
	Re-engineered the hopup levers and concave nubs to work best with R-hop and Standard-Hop to keep the BBs shooting straight and accurate on every single shot
	Removable Brass Threaded Slot Pin for setup and maintenance
	Compatible with ICS stock nozzle, or nozzle length from 21.00mm to 21.25mm
	Fully compatible with stock bucking and most aftermarket soft and hard rubber bucking without losing FPS or dropping BBs
	Equipped with a new CNC Delrin Locking C-Clip design to hold barrel tight without wobbling and twisting
	Equipped with 3 compression springs on top, at bottom and in center of housing to ensure the hopup unit is exactly centered, straight and air tight
	Compatible with stock gear box or any V2 gear boxes with 11.5mm or 12mm bore
	Specially designed with BB Latching System to prevent dropping BBs after removing the magazine
	Manually opened to release BBs from inside hopup chamber by hand
	The Dual UV LED Boards and Module set and Single UV LED Board w/ Clear Cover and Module set to glow BBs in the dark ready!
	The Empty Magazine Detection Sensor to stop Motor/HPA firing ready!

	Weight
	N/A grams

	Usage
	Compatible with ICS CXP/CS4/EBB (include old models) M4/M16 AEG series -ICS CXP series -ICS CS4 series -ICS EBB series

	Requires
	Wearing eye protection is recommended
	Use proper tools for disassembly and reassembly the gear box with great care due to spring tension
	Bearing lubricant oil/grease is recommended for smooth operation

	Instruction
	Instruction Manuals are included
