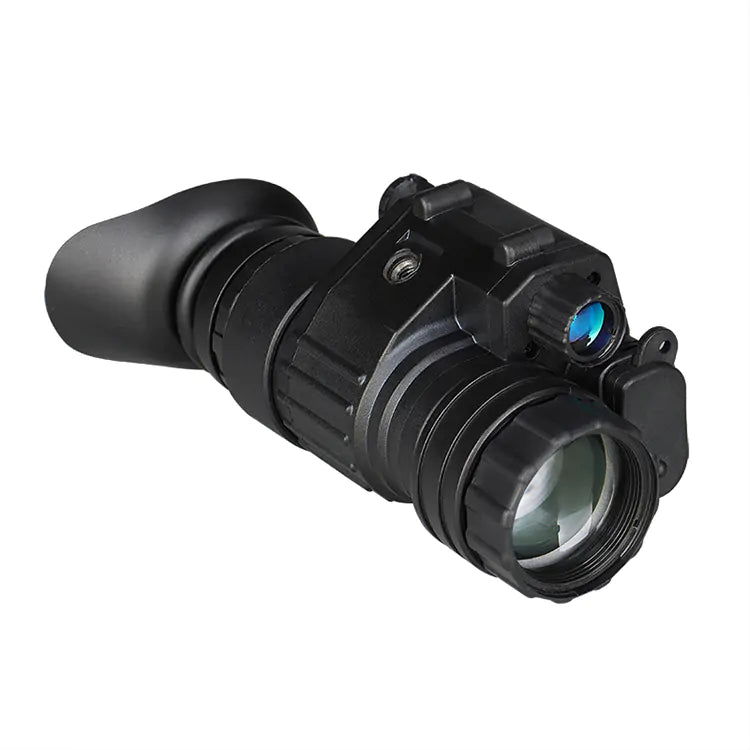

PV 3x32 Night Vision Scope HM
PV 3x32 Night Vision Scope HM
Não foi possível carregar a disponibilidade de recolha
Night Vision is a precision electronic instrument used to observe the target in the night and twilight.
In order to meet in a very low light intensity, night vision with infrared irradiation light source, turn on the power switch, you can adjust its brightness by switching.
It is a day and night of night vision comes with infrared the irradiated light source.
Under bright and dim light it shows color lmages while black and white image in darkness.
It own infrared irradiation light source device,according to the use of environmental condition can be forced open or close, and may, according to the environment light brightness manual regulation to need the best condition.

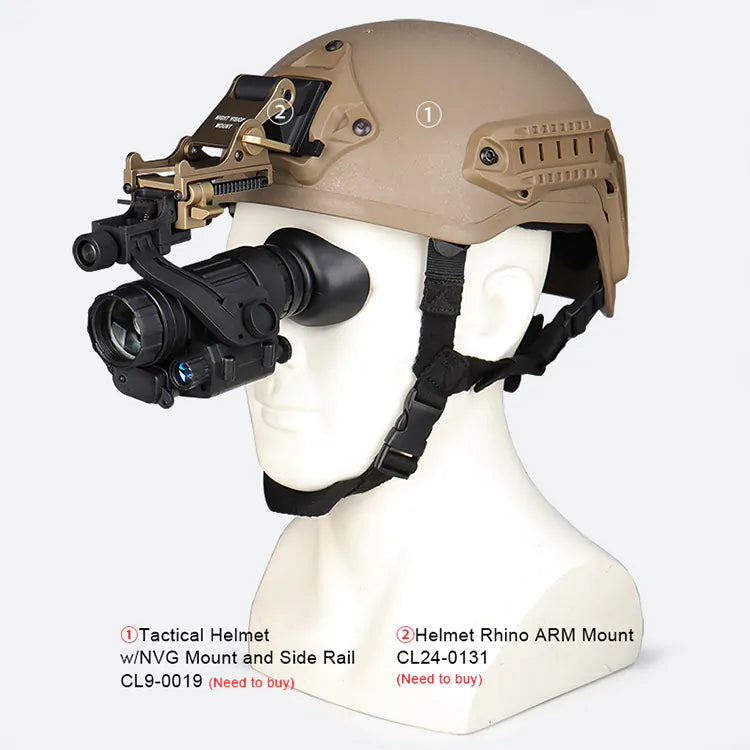

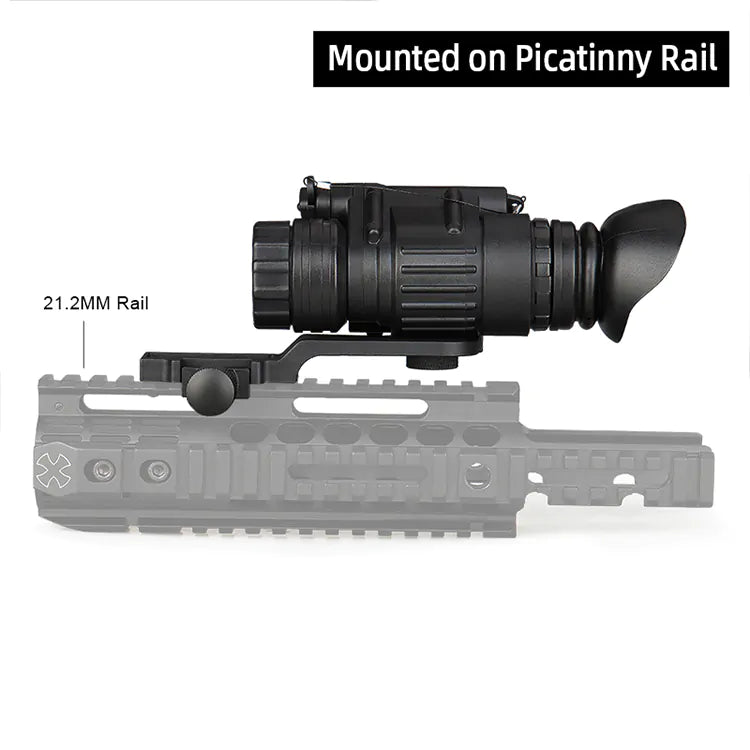

INCLUDED: Helmet mount, picatinny mount, manual and transportation pouch
|
class |
projects |
3X The parameter value |
|
Optical performance |
magnification |
3X |
|
Diameter of the objective |
Φ32mm |
|
|
Field of view |
6.68°x5.0° |
|
|
Exit pupil distance |
14mm |
|
|
Exit pupil diameter |
6mm |
|
|
Range of visibility adjustment |
±5 SD |
|
|
Points braid rate |
5.6″ |
|
|
Minimum observation distance |
0.8m |
|
|
Observe the distance at night |
more that 200m |
|
|
imager |
The sensor |
1/3″CMOS |
|
Horizontal definition |
420 lines |
|
|
Display unit |
Display device |
0.24inch LCOS |
|
resolution |
300(H)*224(V) |
|
|
lighting |
Lighting devices |
IR LED |
|
Center wavelength |
940nm |
|
|
Power supply |
Working voltage |
DC 3V |
|

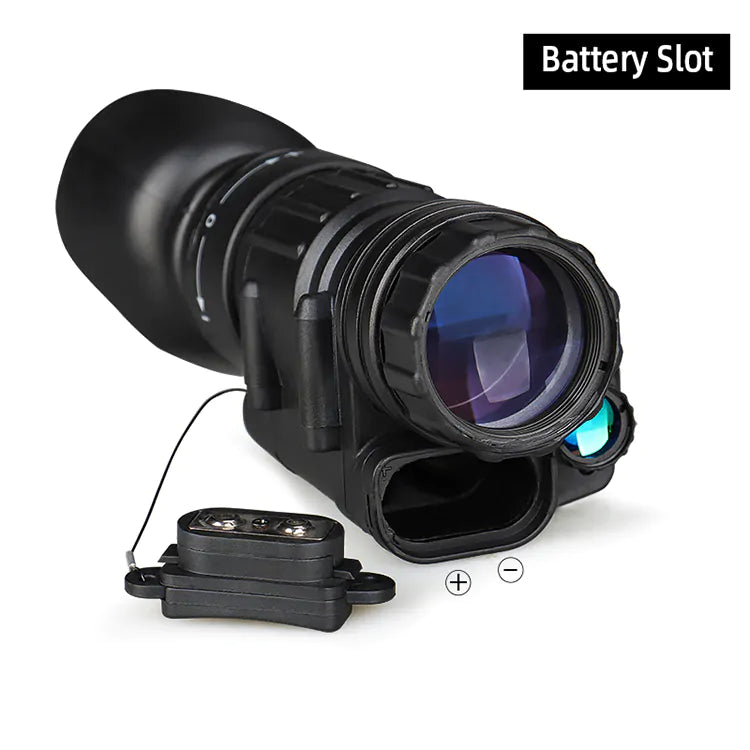

Built-in power supply |
2 section 5 battery |
|
|
The battery works continuously |
1.5/2.5 h(IR ON/IR OFF) |
|
|
Product size |
Length * width * height |
13.5X6.3X6.4CM |
|
Packing size |
Length * width * height |
20.6X17.5x8.2CM |
|
others |
switch |
1. Power switch; 2. Infrared illumination brightness adjustment; 3. Forced switch infrared illumination |
|
weight |
214g (without battery) 261g (with battery) |
