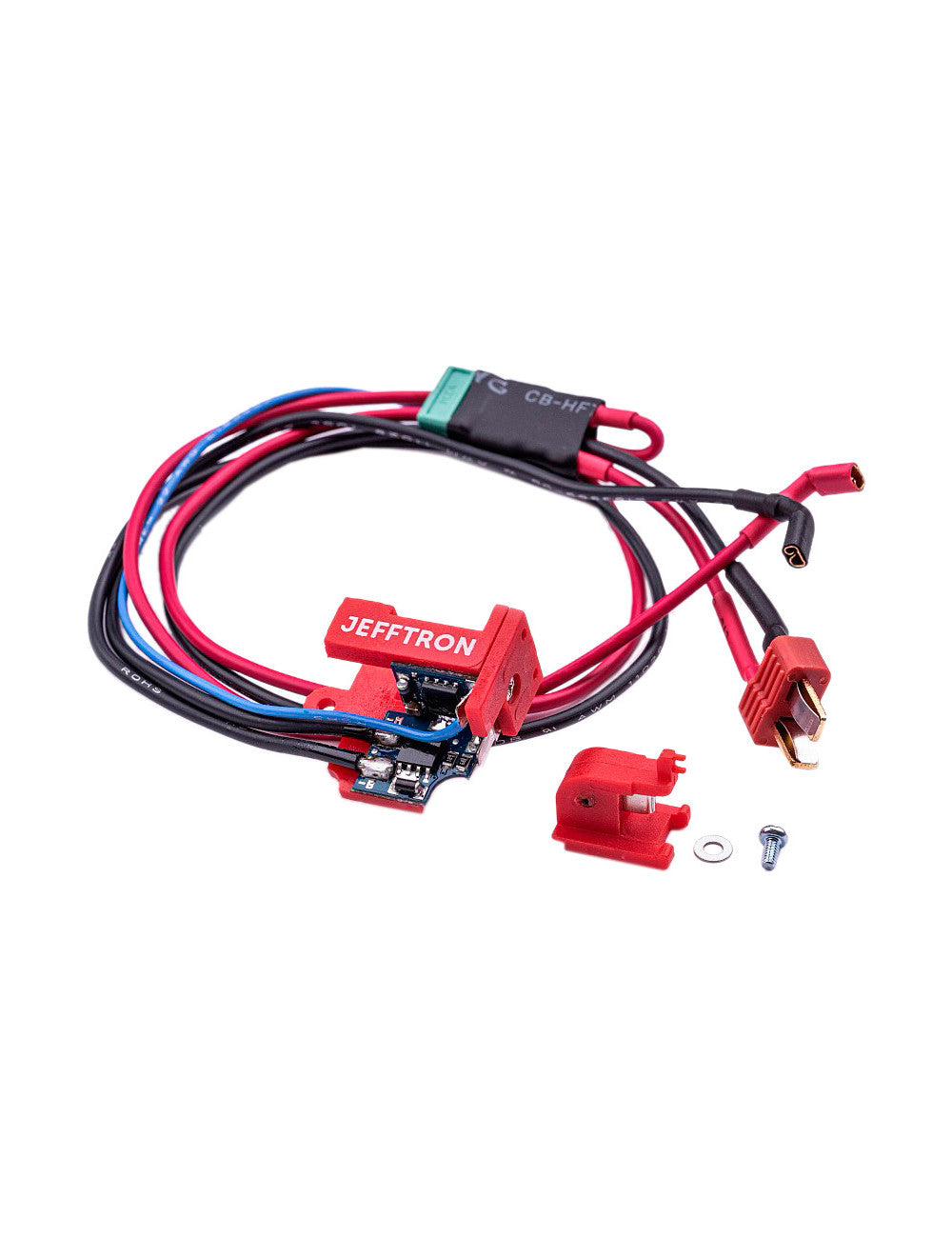

JEFFTRON JT-BRK-W5 Active Brake V2 Rear Wiring

  • Sale
  • Regular price €35,00
Tax included.


Mosfet with active brake for airsoft electric weapons (AEG) The device increases the firing speed of the weapon and the battery life With the active brake activated, the piston and spring are completely released, the parts in the gearbox are not under tension and the nozzle blocks the hop chamber in large part (depends on the ROF) In weapons with a very high firing speed (ROF), the active brake solves the problem of multiple shots in SEMI mode The device is fully integrated into the Gearbox version 2 in the original trigger site, compatible with the Tokyo Marui standard Rear wiring with DeanT connector: no welding required for installation SPECIFICATIONS: · Mosfet with active brake · Easy installation in Gearbox version 2 · The complete wiring allows a faster and easier installation in the weapon, is long enough for all types of weapons with battery placed in the butt · High quality power cables 1.5 qmm (AWG16) with MPPE insulation and 0.34 blue signal cable qmm (AWG24) with MPPE insulation · The cable length between the Gearbox and the battery connector is 290 mm · Conformable coated plate, protects the device against water · Designed for springs up to M160 · Compatible with common batteries up to 17V (Ni-XX 8.4-12V, LiPO 7.4-14.8V) · No current consumption in idle mode · No sparks in the contacts of the switch · The active brake uses excess engine power to stop it. The braking effect is the most powerful with high torque motor · In automatic firing mode, the piston stops in a random position due to the Gearbox design · For proper operation, the Gearbox must have cut off lever, plate selector, anti reversal latch, trigger and trigger block PRODUCT CONTENT: · Mosfet with wiring, DeanT connector, 30A mini fuse and faston connectors · Trigger switch · Installation manual
